Περιγραφή προϊόντος

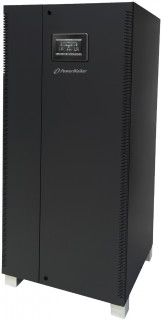

PowerWalker VFI 200K CPT 3/3 BX

Art-No: 10122037
EAN: 4260074977998

Possibility to operate as 1/1, 3/3, 3/1 and 1/3 phase
Up to 4 units operating in parallel
Available with 5.7inch LCD panel or 7inch LCD display
All the boards are available for easy maintenance behind the front door
Up to 95% efficiency with forth generation IGBT transistors

PowerWalker VFI CPT 3/3 series can operate in parallel with maximum 4 units. Fourth generation IGBT transistors helped to achieve high efficiency up to 95% minimising heat losses and prolonging life of the device. The UPS has high flexibility in adapting to input and outputs and may serve as single- or three-phase output, both in combination with single- or threephase input! It can work as 1-to-3 phase.
The UPS has provided the following standard communication selections:
relay interface, RS-232/485 port, SNMP port, Modbus RTU / SEC protocol, 2 connectors for parallel work.
The unit is designed to work with external batteries operating on two halfstrings of 31 batteries each. Equipped with strong charger it guarantees reliable and efficient recovery after mains failure.

200000VA

Γενικά χαρακτηριστικά
Τύπος	Online
Xωρητικότητα ισχύος	200000VA / 180000W
Συντελεστής ισχύος εξόδου	0.90
Input
Εύρος τάσης εισόδου	320-460 VAC
Dual Input	Ναι
Max THDi	≤1.5% at 100% load; ≤2.0% at 50% load; ≤6.0% at 10% load;
Input PF	1.0 at full load >0.99 at 10% load
Εύρος συχνότητας	47.5Hz - 52.5Hz or 57Hz - 63Hz
Frequency (Synchronized Range)	50Hz or 60Hz ±2Hz
Output
Ονομαστική τάση εξόδου	3 x 400 VAC (3phase + N +G)
Καθαρό ημίτονο	Ναι
THDv	≤0.5% Full Linear Load; ≤1.5% Non-Linear Load
Voltage Regulation (Bat. Mod.)	±1% Stationary; ±2% Transitory (load variation 100-0-100%)
Frequency (Battery Mode)	±0,025Hz
Παράλληλη λειτουργία	Up to 4 of the same size
Τεχνικές λεπτομέρειες
Load Crest Ratio	3:1
CVCF	Yes, but requires de-rating to 60%
Transfer Time [AC to Battery]	0ms
Transfer Time [Inverter to Bypass]	0ms
Bypass	Processor controlled solid state static bypass. Automatically on for overloads above 150%, retransferred back after alarm clear.
Generator support	Ναι
Overload Capacity	Phase: 10min @ 125%; 60s @ 150%; Total: 10min @ 112.5%; 60s @ 135%; Bypass: 10s @ 400%
External Battery Connection	Ναι
Charger	188A
Protection	High overload, short-circuit, RMS voltage limit, high crest-factor current, peak voltage limit
Fan Logic	Always on, automatic speed control
Επιπλέον πληροφορίες	Current Limitation: High overload PFC Limit (discharging batteries); Max. Synchronisation speed: ±10Hz/s Phase displacement: 120deg±1% at balanced load; 120deg±2% at imbalances of 50% of the load Dynamic Recovery Time: 10ms at98% of the static value Admissible Power Factor: 0.7 inductive to 0.7 capacitive
Απόδοση
LINE mode full Load	92.6%
Μπαταρίες και χρόνος αυτονομίας
Batteries	Designed to work with external batteries. Batteries are not included
DC Voltage	62 x 12V
Συνδέσεις και επικοινωνία
Terminal Output	1
Input	Terminal
Software	ViewPower
RS-232 Port	Ναι
Extension Slot	Ναι, 1
Dry Contacts	Ναι
Περιβάλλον
Εφοδιαστική αλυσίδα
Package Content	built to order
Manual Languages	EN
EAN	4260074977998
Πλάτος	900 mm
Ύψος	1900 mm
Βάθος	850 mm
Βάρος	550 kg
Pcs. per box	1
Pcs. per layer	1
Pcs. per pal	1
