Περιγραφή προϊόντος

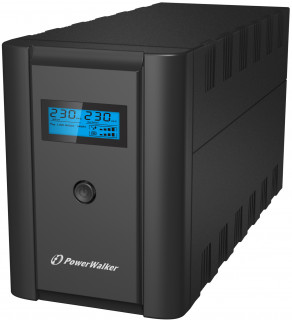

PowerWalker VI 1200 SHL IEC UK

Art-No: 10121012
EAN: 4260074976694

USB with Human Interface Device (HID) support and WinPower software for controlling and monitoring
Surge protection on phone line and modem
Several versions - Type F (CEE 7/3), Type E (CEE 7/5), IEC also with UK input cable
Fast charging 2-4h to 90%
Immediate successor of VI SE Series

The PowerWalker VI SHL series offers comprehensive protection and high power density in a small and affordable package. The integrated AVR function ensures a clean and stable power supply even during mains operation.
In addition, the UPS offers communication options via the USB port, either via software or directly via HID (Human Interface Device).

IEC

Γενικά χαρακτηριστικά
Τύπος	Line-Interactive
Xωρητικότητα ισχύος	1200VA / 600W
Συντελεστής ισχύος εξόδου	0.50
Input
Εύρος τάσης εισόδου	170-280 VAC ±7%
Frequency (Synchronized Range)	50Hz or 60Hz
Output
Ονομαστική τάση εξόδου	230 VAC
Voltage Regulation (Bat. Mod.)	±10%
Frequency (Battery Mode)	±1Hz
Τεχνικές λεπτομέρειες
Transfer Time [AC to Battery]	4-8ms
Overload Capacity	N/A
Charger	1.2A
Protection	Discharge prevention; Deep discharger; Overcharge; Overload
Fan Logic	No fan
LCD Indicators	AVR mode, Battery mode, Load level, Battery capacity, Input voltage, Output voltage, Overload alarm, Fault alarm, and Low battery alarm
Απόδοση
LINE mode full Load	95.0%
Μπαταρίες και χρόνος αυτονομίας
Batteries	2x 12V/7Ah
DC Voltage	2 x 12V
Recharge Time	4h to 90%
Full Load Backup Time	1.3min
Half Load Backup Time	11min
Συνδέσεις και επικοινωνία
IEC C13 Outlet	6
Input	C14-UK
Software	WinPower
USB port	Ναι
HID Support	Ναι
RJ-45/RJ-11 protection	Ναι
Περιβάλλον
Επίπεδο θορύβου	No Fan
Θερμοκρασία	0°C – 40°C
Υγρασία	0% - 90% RH (non-condensing)
Εφοδιαστική αλυσίδα
Package Content	UPS, Manual, USB Cable, Input Power Cable, IEC Cable
Manual Languages	EN/DE/FR/PL/SE/FI/DK/NO
EAN	4260074976694
Πλάτος	139 mm
Ύψος	195 mm
Βάθος	364 mm
Βάρος	8.6 kg
Giftbox - Πλάτος	230 mm
Giftbox - Ύψος	292 mm
Giftbox - Βάθος	452 mm
Giftbox - Βάρος	8.9 kg
Pcs. per box	1
Pcs. per layer	7
Pcs. per pal	42
