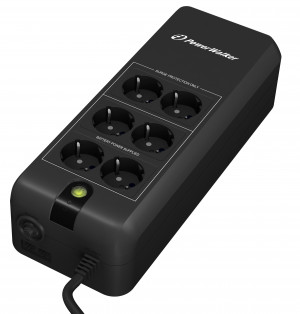

PowerWalker VFD 600 APFC

Art-No: 10120410
EAN: 4260074975499

  • Supports full rating APFC power supplies
  • Most economic back up solution
  • Easy user-replaceable battery design
PowerWalker VFD APFC series is a standby/offline UPS for home and office applications, and it is equipped with a technology that supports the full use of the UPS’s power, even when used with a APFC device.
Usually, it is required to oversize the UPS to ensure secure backup when connecting with a power load with “Active Power Factor Correction”, APFC. Therefore, you can choose a smaller cost-effective UPS. Besides the lower purchase price, it also saves energy cost due to lower own power consumption.
Equipped with 6 outlets (all with surge protection, 4 with battery backup) these models can be used like a power strip. A special battery compartment enables an easy exchange of the rechargeable battery by the user.


Γενικά χαρακτηριστικά
ΤύποςOffline
Xωρητικότητα ισχύος600VA / 300W
Συντελεστής ισχύος εξόδου0.50
Input
Εύρος τάσης εισόδου170-280 VAC
Frequency (Synchronized Range)50Hz or 60Hz
Output
Ονομαστική τάση εξόδου230 VAC
Voltage Regulation (Bat. Mod.)±10%
Frequency (Battery Mode)±1Hz
Τεχνικές λεπτομέρειες
Transfer Time [AC to Battery]2-8ms
Overload CapacityN/A
LED IndicatorsAC Mode: Green LED
Battery Mode: Green LED flashing (5sec interval)
Low Battery: Green LED flashing (1sec interval)
Fault: RED LED
Overload: RED LED flashing (1sec interval)
Απόδοση
LINE mode full Load95.0%
Μπαταρίες και χρόνος αυτονομίας
Batteries1x 12V/5Ah
DC Voltage1 x 12V
Recharge Time10h to 90%
Full Load Backup Time2min
Half Load Backup Time8min
Συνδέσεις και επικοινωνία
CEE 7/3 (Type F) Outlet6
InputCEE 7/7
RJ-45/RJ-11 protectionΝαι
Περιβάλλον
Επίπεδο θορύβουNo Fan
Θερμοκρασία0°C – 40°C
Υγρασία0% - 85% RH (non-condensing)
Εφοδιαστική αλυσίδα
Package ContentUPS, Manual
Manual LanguagesEN/DE/FR/PL/RU/PT
EAN4260074975499
Πλάτος125 mm
Ύψος86 mm
Βάθος320 mm
Βάρος2.8 kg
Giftbox - Πλάτος152 mm
Giftbox - Ύψος190 mm
Giftbox - Βάθος378 mm
Giftbox - Βάρος3.4 kg
Carton - Πλάτος484 mm
Carton - Ύψος396 mm
Carton - Βάθος400 mm
Carton - Βάρος20.1 kg
Pcs. per box6
Pcs. per layer24
Pcs. per pal120
