Περιγραφή προϊόντος

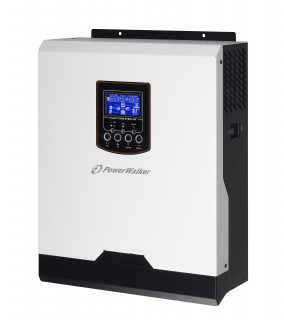

PowerWalker Inverter 3000 PWM

Art-No: 10120224
EAN: 4260074982992

Pure Sine Wave for wide range of applications and harsh environment
Output Power Factor 1.0
Strong Configurable AC/Solar Charger
Smart Battery Charger Design for optimized Battery Performance
Generator compatible

PowerWalker Inverter 3000-5000 PWM series is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications.

3000VA

5000VA

Γενικά χαρακτηριστικά
Τύπος	Inverter
Xωρητικότητα ισχύος	3000VA / 3000W
Συντελεστής ισχύος εξόδου	1.00
Input
Εύρος τάσης εισόδου	170-280 VAC or 90-280 VAC
Εύρος συχνότητας	50Hz or 60Hz (self-adaptive)
Frequency (Synchronized Range)	50Hz or 60Hz
Output
Ονομαστική τάση εξόδου	230 VAC
Καθαρό ημίτονο	Ναι
Voltage Regulation (Bat. Mod.)	±5%
Τεχνικές λεπτομέρειες
Transfer Time [AC to Battery]	10ms normal range; 20ms wide range
Generator support	Ναι
External Battery Connection	Ναι
Charger	Battery Voltage: 24VDC Floating Charge Voltage: 27VDC
Protection	Overcharge Protection 33VDC
LED Indicators	AC/Solar or Battery: Solid Green Light/ Flashing Green Light Battery is Fully charged/ is charging: Solid Green Light/ Flashing Green Light Fault in the Inverter/ Warning Condition: Solid Red Light/ Flashing Red Light
LCD Indicators	Input, Battery, Temperature, Output and Load Information. Charging Mode, Line Mode and Battery Mode Information.
Απόδοση
LINE mode full Load	96.6%
BATTERY mode full Load	88.2%
Μπαταρίες και χρόνος αυτονομίας
Batteries	Designed to work with external batteries. Batteries are not included
DC Voltage	2 x 12V
Συνδέσεις και επικοινωνία
Terminal Output	1
Input	Terminal
Software	WatchPower
USB port	Ναι
RS-232 Port	Ναι
Περιβάλλον
Θερμοκρασία	Operating Temp.: -10°C – 50°C Storage Temp.: -1
Υγρασία	5% - 95% RH (non-condensing)
Εφοδιαστική αλυσίδα
Package Content	Inverter, Manual, USB Cable, Ring Terminal, 2x Strain Relief Plate, 4x Screws and Software CD
Manual Languages	EN
EAN	4260074982992
Πλάτος	285 mm
Ύψος	334 mm
Βάθος	100 mm
Βάρος	6.3 kg
Giftbox - Πλάτος	400 mm
Giftbox - Ύψος	216 mm
Giftbox - Βάθος	500 mm
Pcs. per box	1
Pcs. per layer	6

No accessories available

	Datasheet
	PowerWalker Inverter 3000-5000 PWM [EN]
	Software

Compare

Compare the product with other.

Similar Models

Similar models from different series:

Inverter 3000 PWM

3000VA

No Internal Batteries

Connector for External Batteries

Σειρά Προϊόντων

Other models in this series:

	Inverter 3000 PWM	3000VA	No Internal Batteries	Connector for External Batteries
	Inverter 5000 PWM	5000VA	No Internal Batteries	Connector for External Batteries
